[CVPR 2022] Masked Autoencoders Are Scalable Vision Learners (MAE)

- Introduction



In NLP, models such as GPT or BERT remove a portion of data and learn to predict the removed content



► What is the difference in masked autoencoding between CV and NLP?



1. Architecture was different
   • CNN was traditionally used in the field of vision
   • ViT addressed this gap
2. Information density is different
   • Language: Human-generated signals
   • Vision: Natural signals
   • Masking a very high portion of random patches is effective for image training
3. Decoder's role is different
   • Vision: Decoder reconstructs pixels
   • Language: Predict missing words





By the token masking design, (1) Optimizes accuracy (2) Reduces overall pre-training time

---

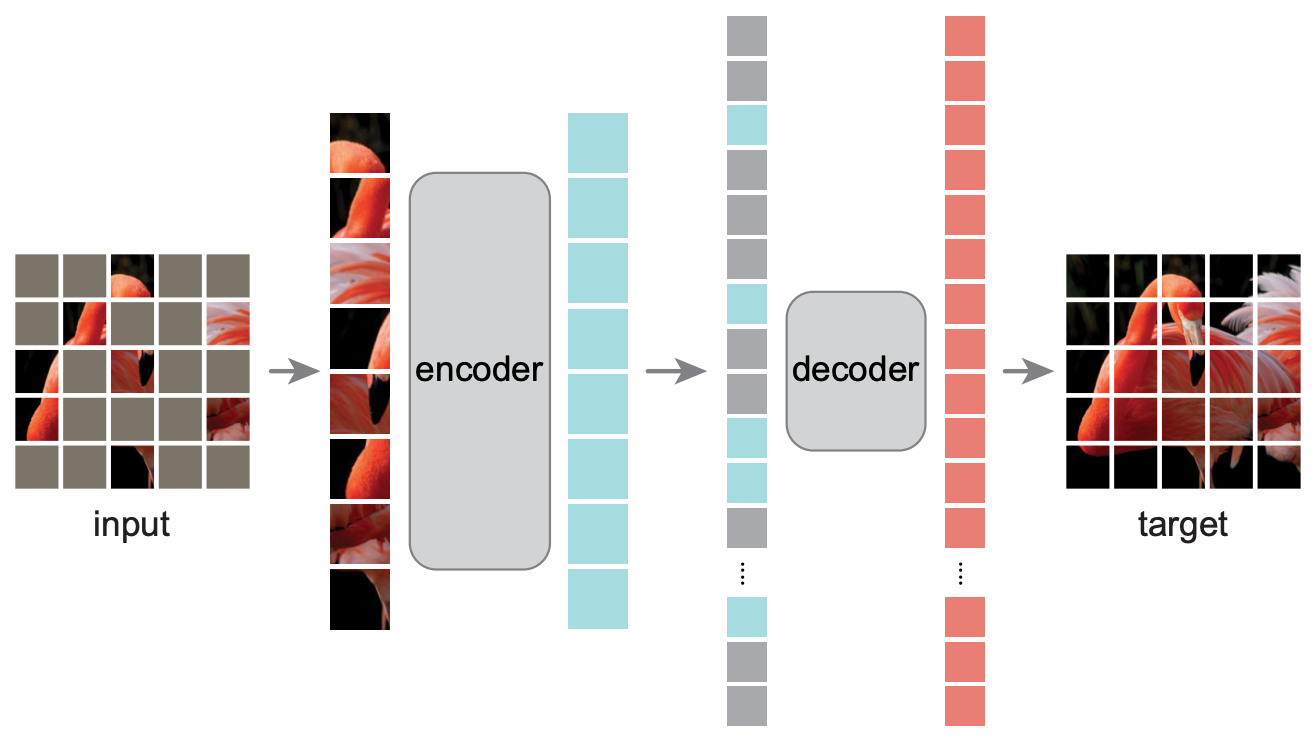

- Method



Masking



Image → Non-overlapping patches (ViT) → Random Sampling

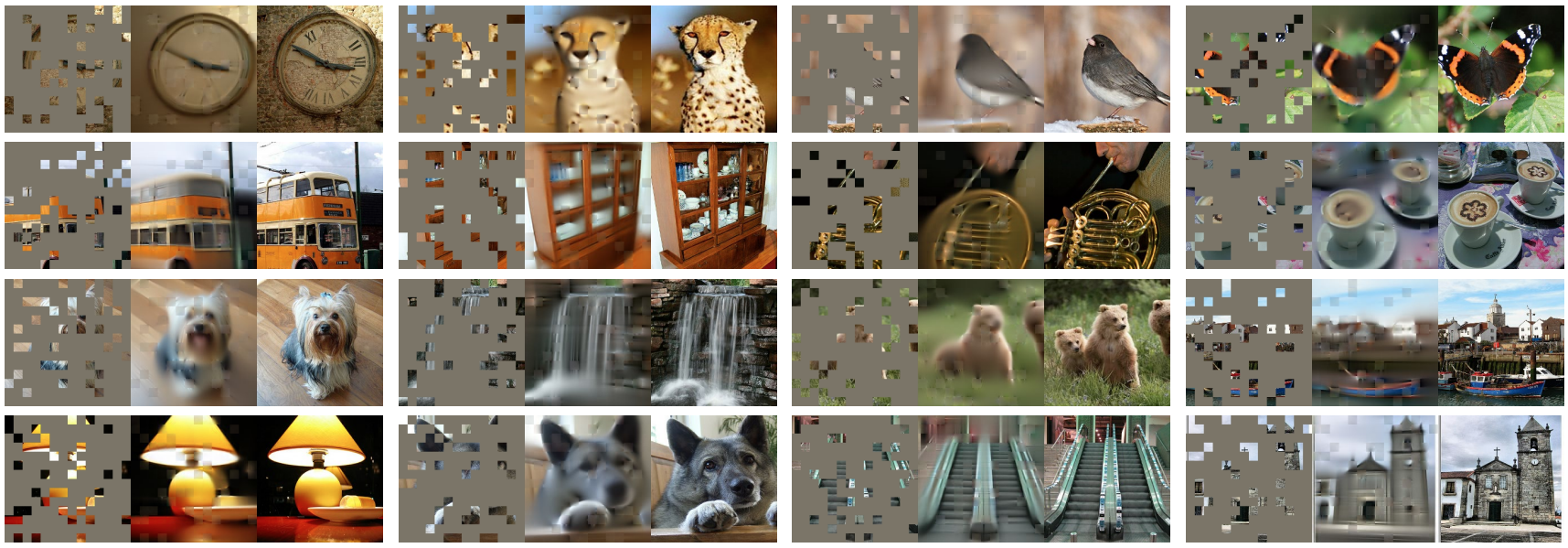

ImageNet validation set / 80% masked

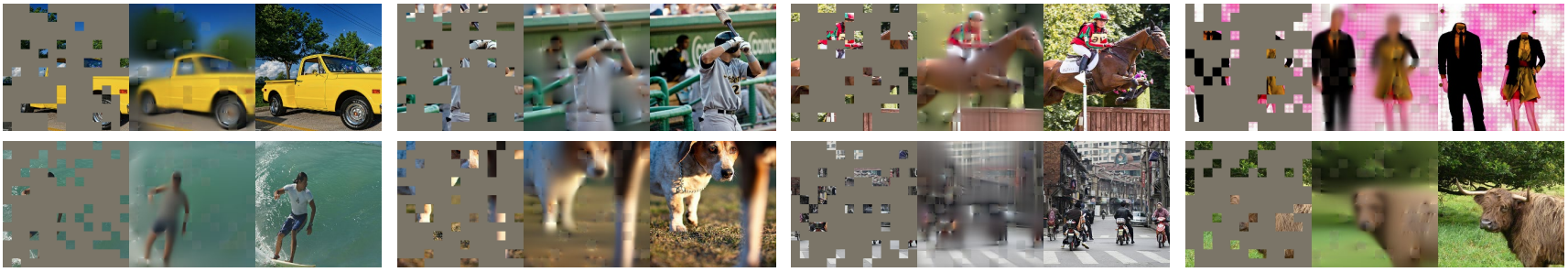

COCO validation set / MAE trained on ImageNet





MAE encoder



ViT encoder only uses unmasked patches





MAE decoder



MAE decoder uses encoded visible tokens along with mask tokens



Positional embedding is added to all tokens





Reconstruction target



Decoder's output is reshaped to form a reconstructed image



Last layer of the decoder is a linear projection



Trained with MSE loss





Simple implementation



1. Generate token for every input patch
2. Token random shuffle and select $x$% portion
3. Encode
4. Append mask tokens to encoded tokens and unshuffle
5. MSE loss

---

- Experiment



Self-supervised pre-training on ImageNet-1k



Baseline: ViT-L 16

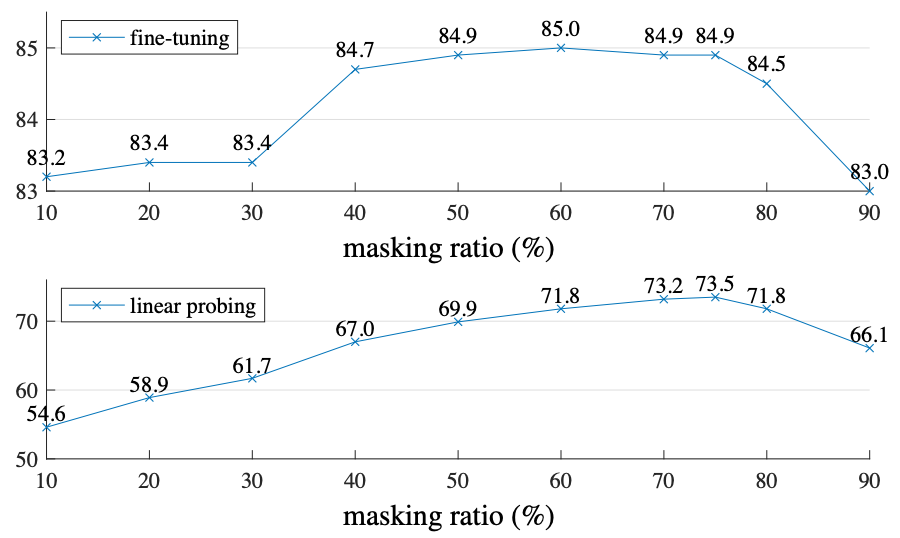

Masking ratio

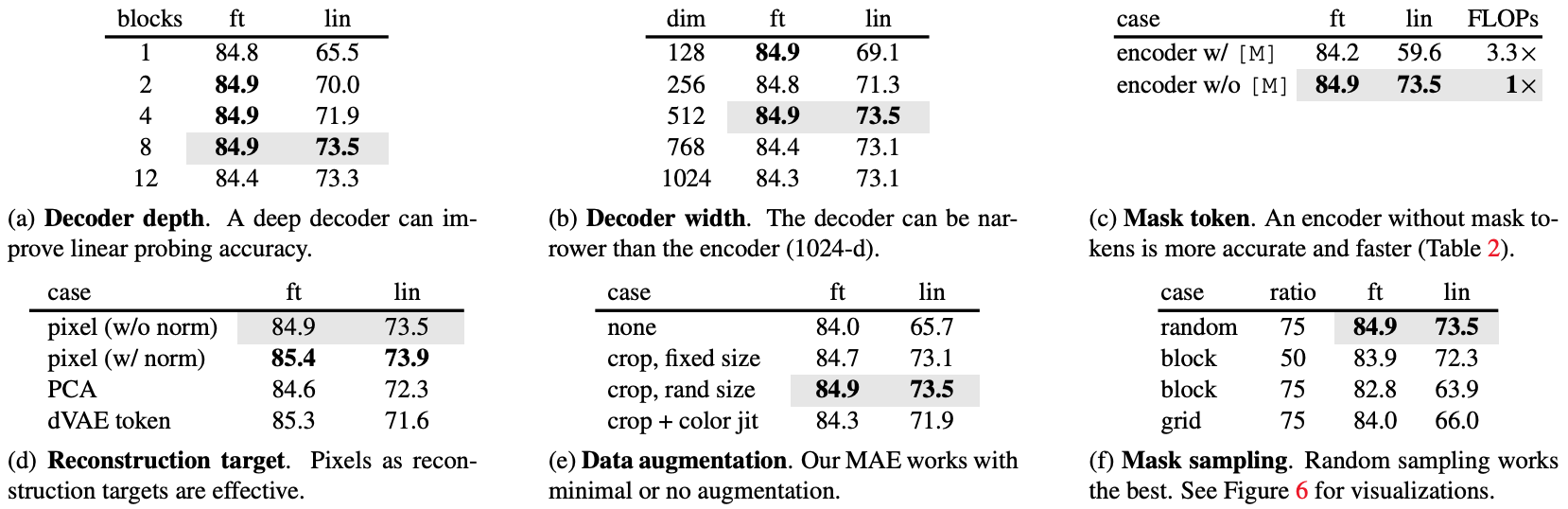

Ablations (Decoder design, Mask token, Reconstruction target, Data augmentation, Mask sampling strategy)

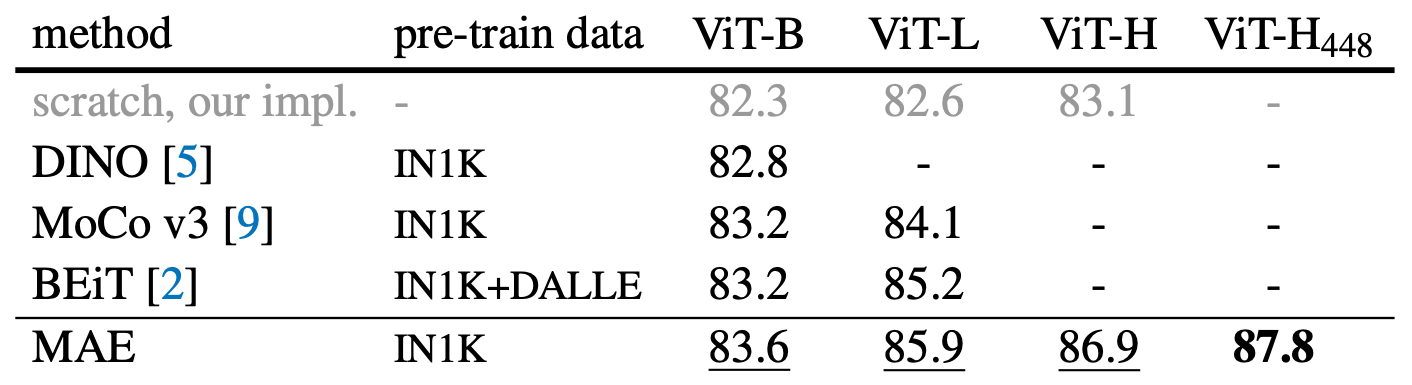

Comparisons with self-supervised methods on IN1K dataset

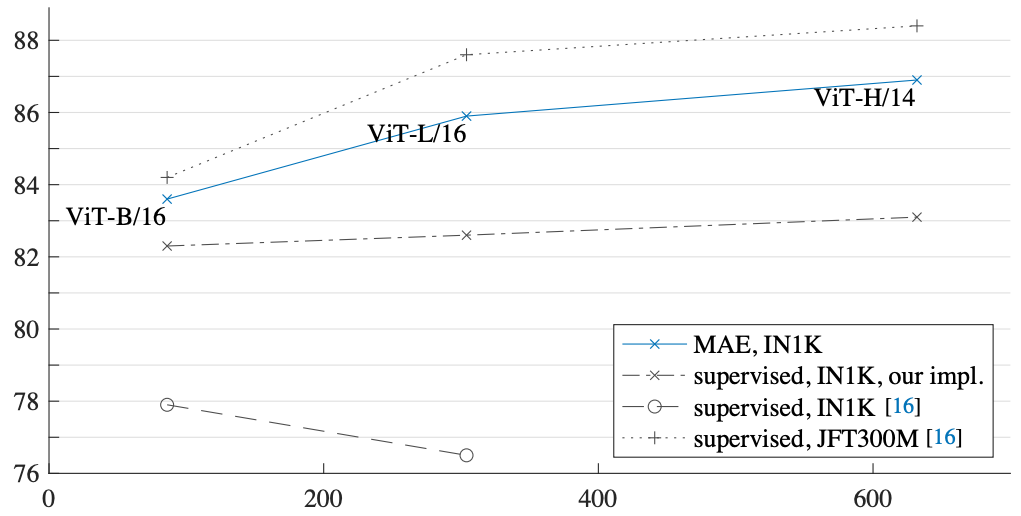

MAE vs Supervised pre-training



---

- Discussion



---

- Reference

[1] He, Kaiming, et al. "Masked autoencoders are scalable vision learners." CVPR 2022 [Paper link]
